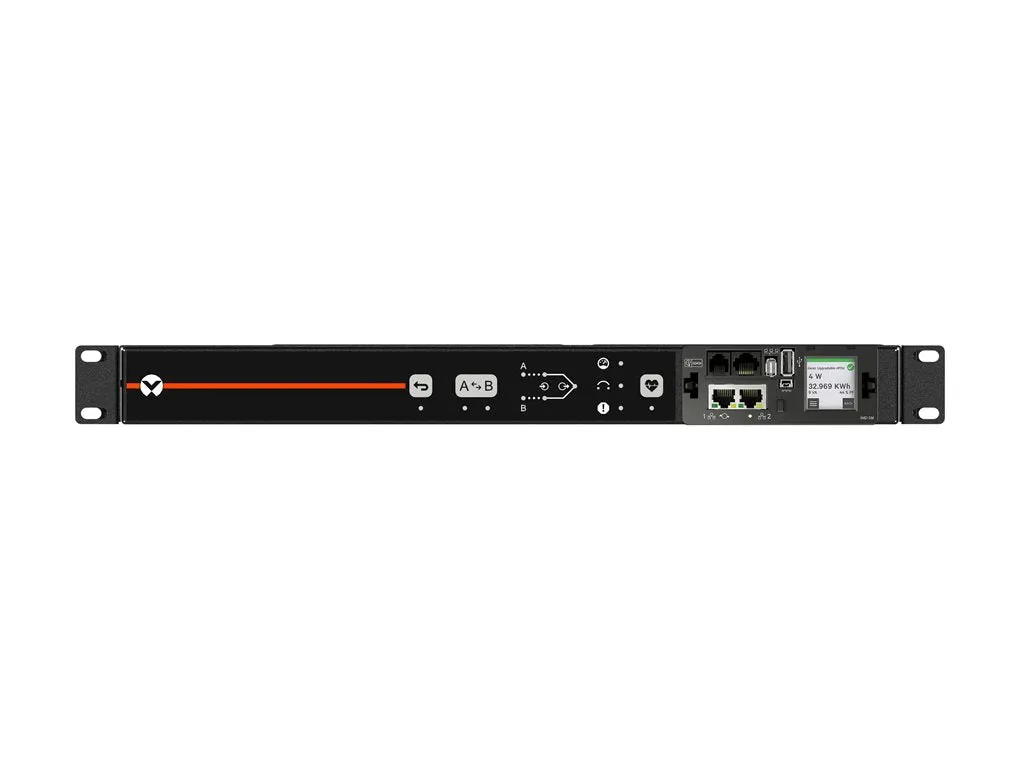

Geist Rack Transfer Switch Unit Level Monitoring AU05M1R0-12CF17-2C20C20A900-D - Power distribution unit (rack-mountable) - AC 120/208/230 V - 3.6 kW - Ethernet 10/100/1000, RS-232, USB - input: IEC 60320 C20 - output connectors: 12 (IEC 60320 C13/C19) - 1U - 19 - 10 ft cord - black powder coat"

• Efficient design
  The unit's 3 m power cable length provides flexibility in installation while maintaining a neat and organized setup.
• Robust connectivity options
  Equipped with various remote management interfaces including RS-232, USB, and Ethernet, ensuring comprehensive device management capabilities.
• Enhanced monitoring capabilities
  Features such as monitored power, phase monitoring, and an LED display allow real-time performance monitoring for effective power management.
• Versatile compliance standards
  Meets multiple standards like IEC 62368-1 and UL/CUL 62368-1, ensuring safe operation in various environments.
• Easy installation
  The included rack mounting kit and compact design ensure a straightforward setup in standard racks.

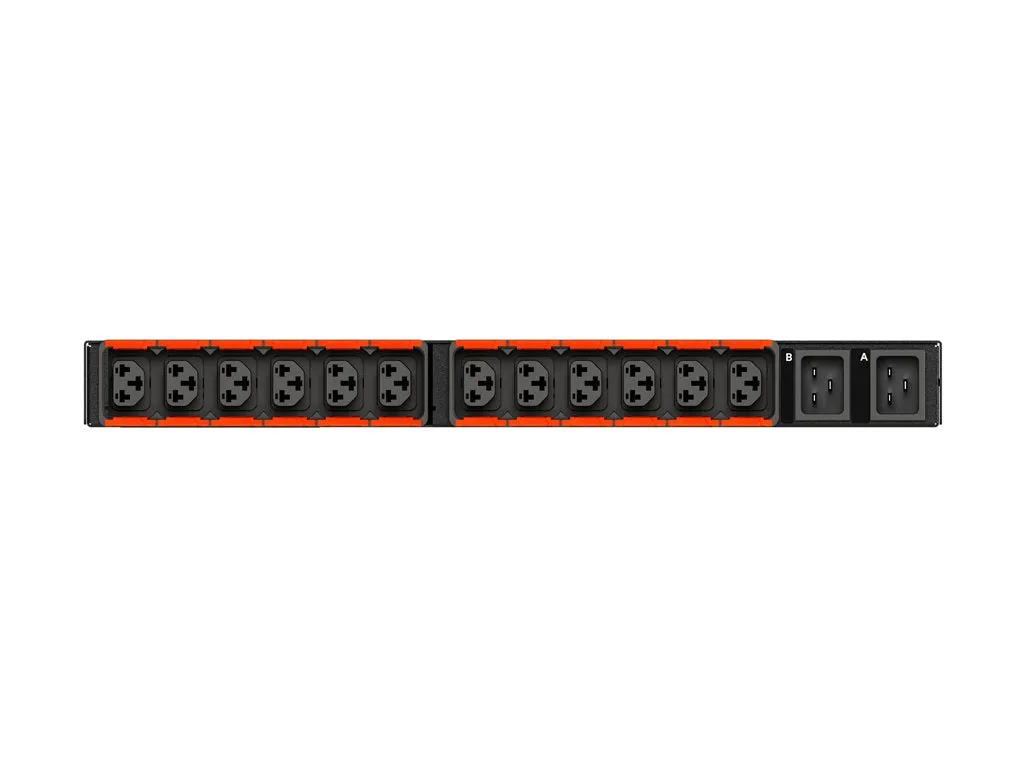

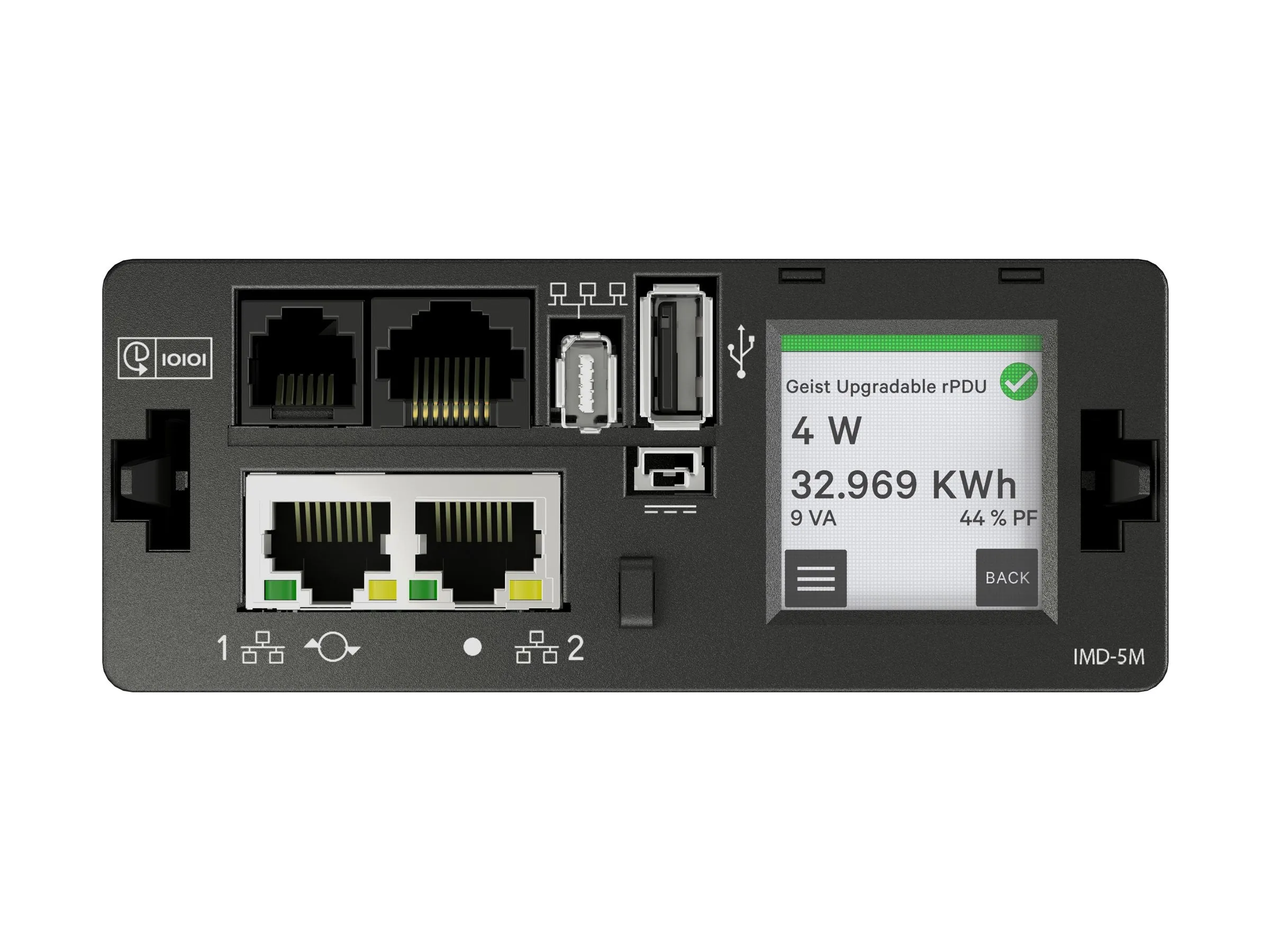

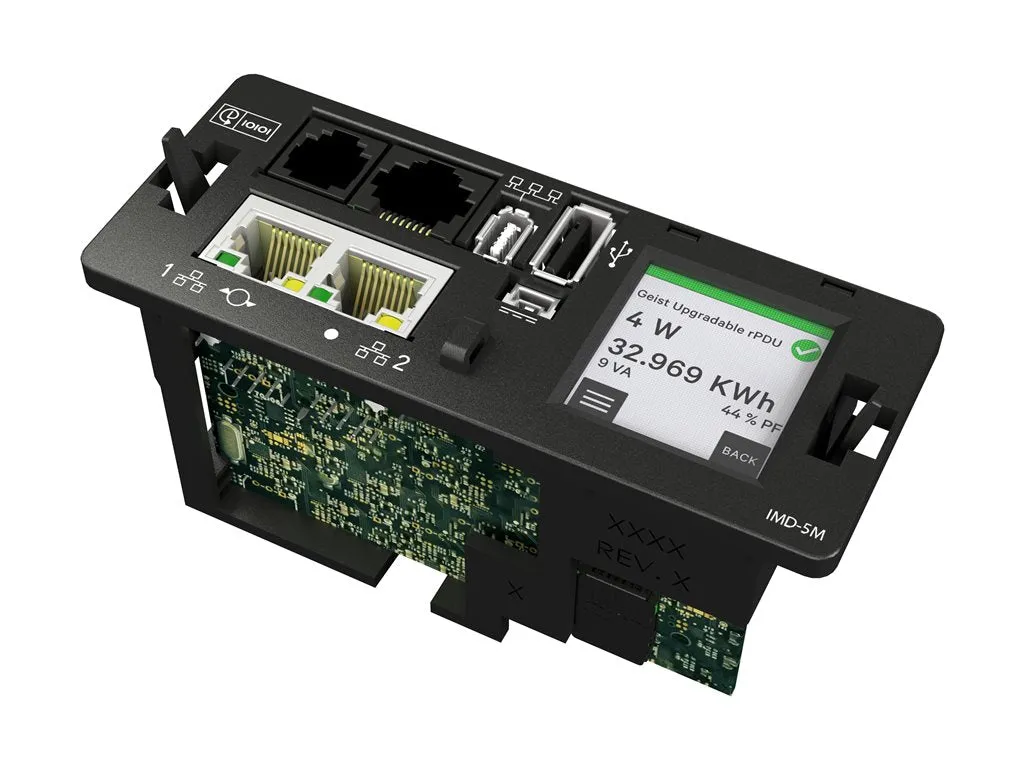

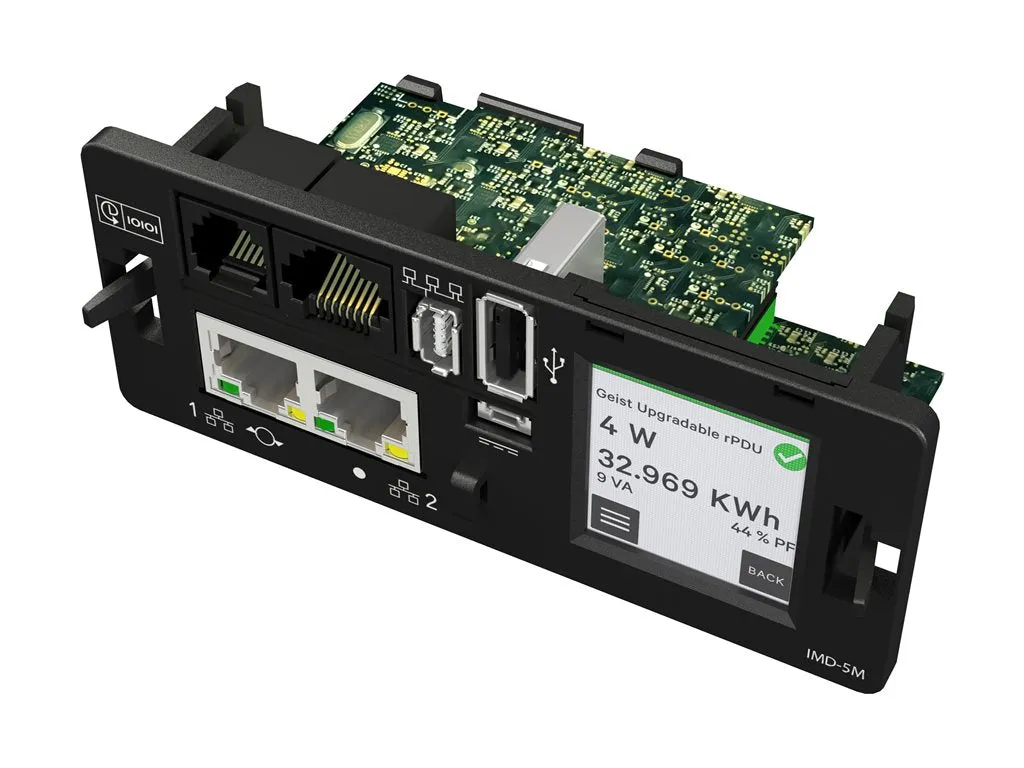

The Vertiv Geist Rack Transfer Switch VA4U21A0 is a 16A/20A, 120V/208V/230V, single-phase unit level monitored rPDU with (12) combination C13/C19 outlets and (2) C20 inlet providing 1.9kW/3.3kW/3.6kW power capacity. This unit provides backup power to single-corded devices and helps ensure continuity in the event of power loss. It quickly detects power loss on the main source and automatically switches to the secondary source within less than 4 to 8 milliseconds. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are CE-marked, comply with IEC 60950-1, RoHS-certified, and are individually tested for functionality and reliability.

• 12 power output connectors for versatile device connectivity
• Maximum power provision of 3.6 kW for reliable performance
• User-friendly design featuring an LED display and control buttons
• Complies with multiple industry standards for safety and performance
• Includes rack mounting kit for easy installation
