Name: Server Technology PRO1 Smart PDU C1L10SA-0ABA2B4 (Link) - Power distribution unit expansion module (rack-mountable) - AC 120/208/230/240
SKU: 338662

Product Details ＋

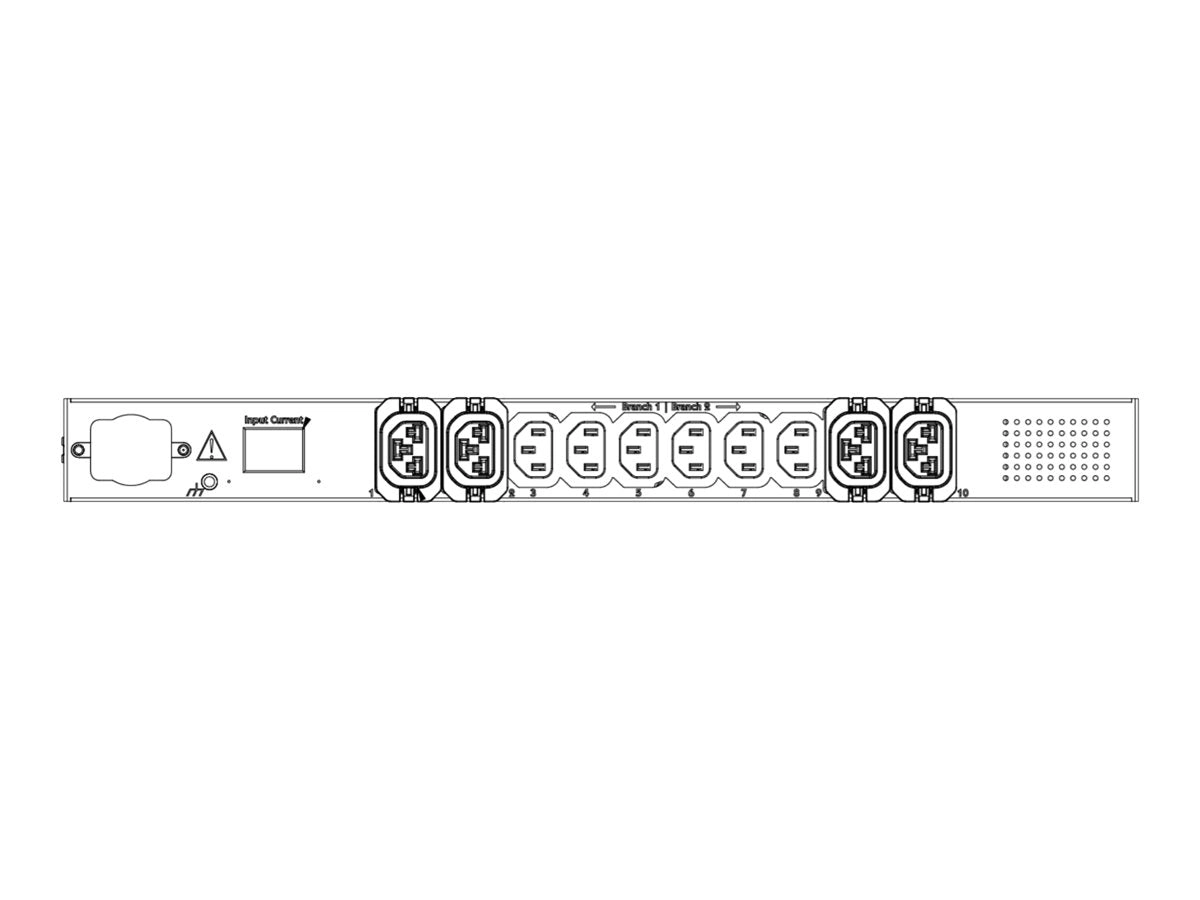

Server Technology PRO1 Smart PDU C1L10SA-0ABA2B4 (Link) - Power distribution unit expansion module (rack-mountable) - AC 120/208/230/240 V - RS-232, Ethernet 10/100/1000 - input: IEC 60320 C20 - output connectors: 10 (6 x IEC 60320 C13, 4 x IEC 60320 Cx)

HDOT Cx
Cx is the future-ready UL tested hybrid of the C13 and C19 outlets accommodating both C20 and C14 plugs.
Network monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
Hot-swap network card
Network access is ensured when power is lost to the primary unit with backup power provided by the primary link unit.
Star multi-linking
Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
Temperature/humidity monitoring
Primary and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
Auto-flip current display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
Per-inlet power sensing
Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
Branch circuit protection
This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
High retention locking outlets
Receptacles have high retention and are compatible with PLock type power cords.
High temperature rating
This product has been tested and approved for safe and reliable operation in 60 °C data center environments.

The Server Technology PRO1 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP.
