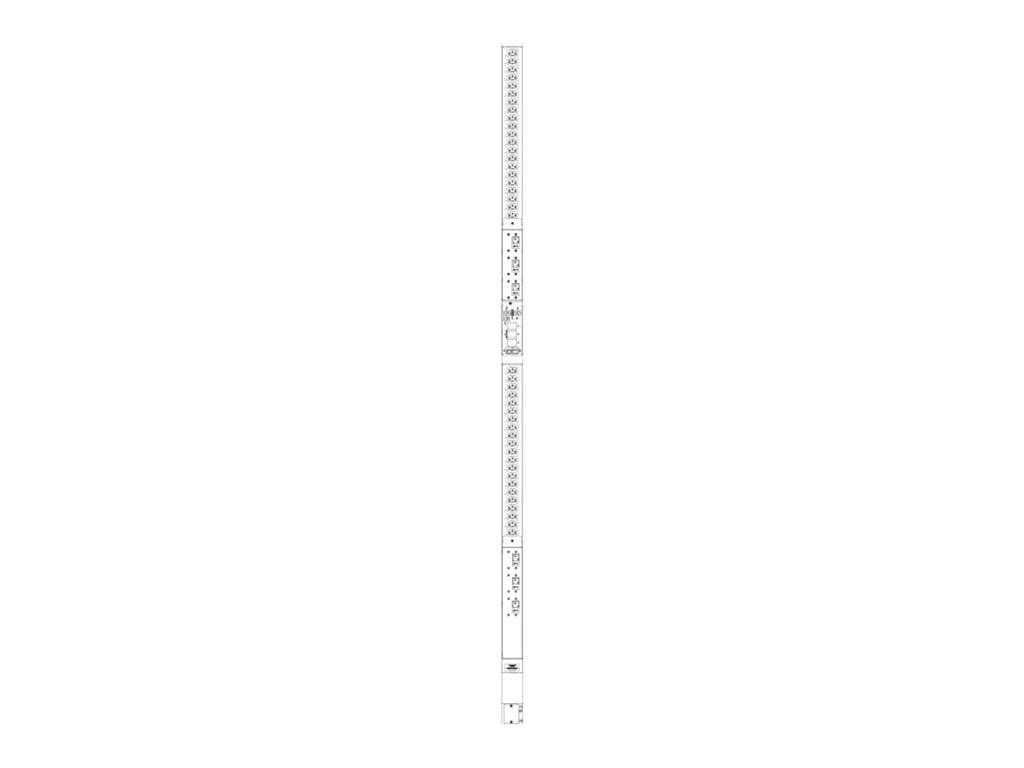

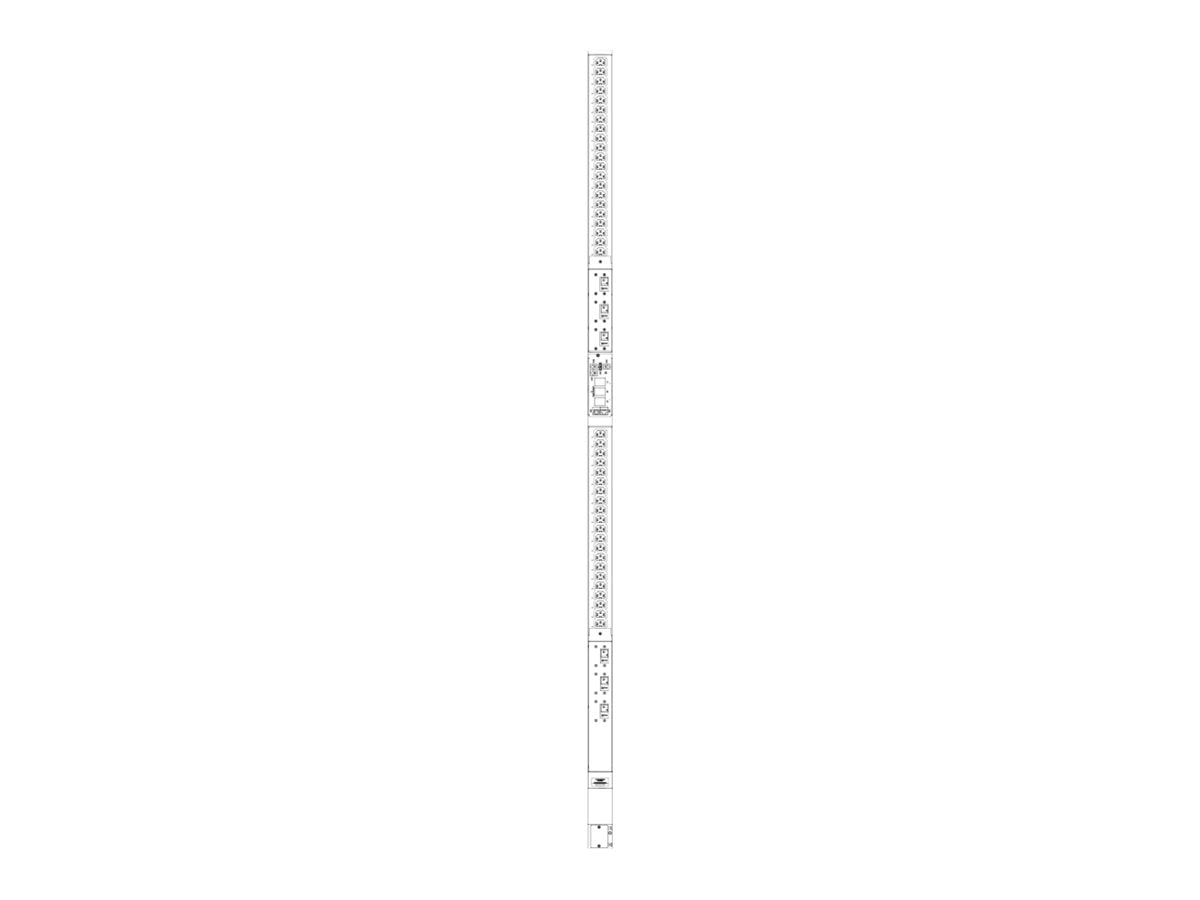

Server Technology PRO2 Switched PDU C2W36TE-DFME2M99 - Master - power distribution unit (rack-mountable) - AC 208 V - 14.4 kW - 3-phase 4 Wire delta - Ethernet 10/100, RS-232 - input: CS8365 - output connectors: 36 (18 x IEC 60320 C13 12A, 18 x IEC 60320 Cx)

• HDOT Cx
  Cx is the future ready UL tested hybrid of the C13 and C19 outlets accommodating both C20 and C14 plugs.
• Network monitoring
  Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
• Hot-swap network card
  Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit.
• Temperature/humidity monitoring
  Receive SNMP-based alerts and email notifications.
• Outlet control
  On Switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
• Alternating-phase outlets
  3-phase power is wired in an alternating fashion per outlet for simplified load balancing, reduced cord lengths, and better airflow.

The Server Technology PRO2 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input.
