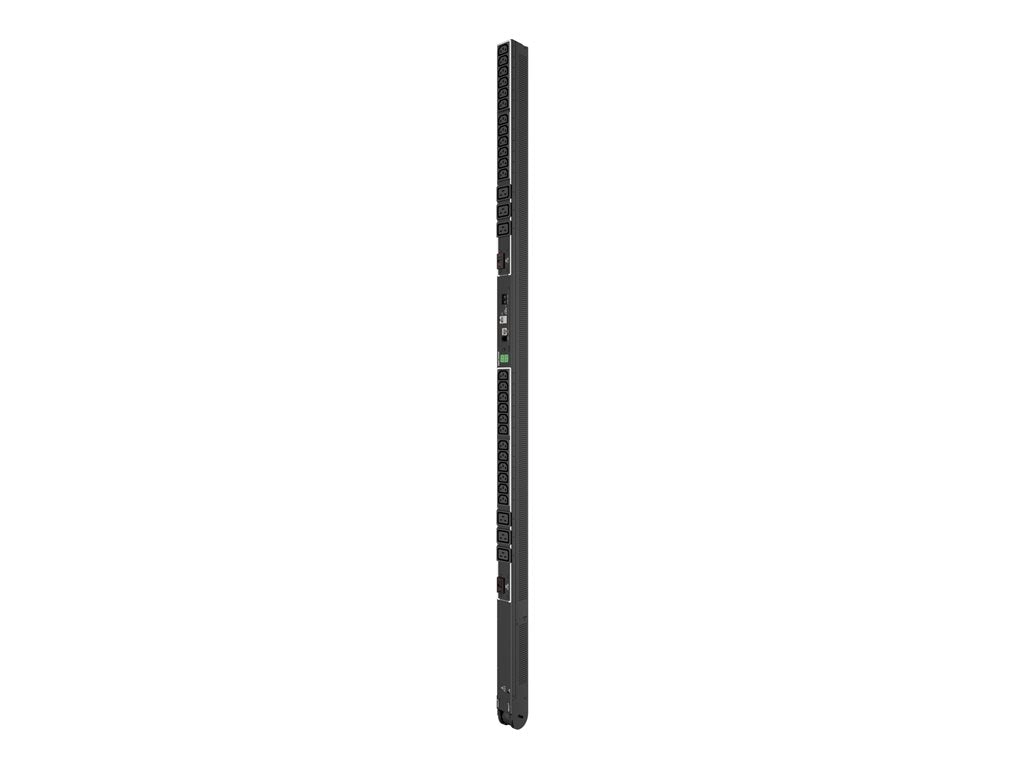

Server Technology PRO1 Smart PDU STV-3531G - Master - power distribution unit (rack-mountable) - AC 208 V - 3.3 kW - 1-phase - Ethernet 10/100, RS-232 - input: IEC 60320 C20 - output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13)

• Network monitoring
  The PRO1 hot-swappable network card provides for HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
• Hot-swap network card
  Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit.
• Star multi-linking
  PRO1 provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
• Temperature/ humidity monitoring
  PRO1 Master and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
• Auto-flip current display
  Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
• Per-inlet power sensing
  Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.

The Server Technology PRO1 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP.
