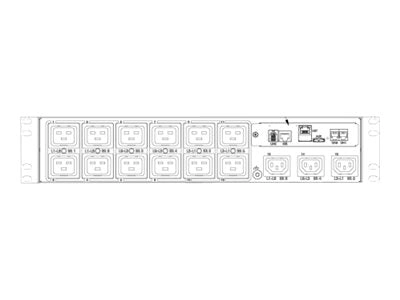

Server Technology PRO1 Smart PDU C1S15HN-DQJN5BC3-013 - Master - power distribution unit (rack-mountable) - AC 208 V - 17.3 kW - Ethernet 10/100, RS-232 - input: IEC 60309 3P G - output connectors: 15 (12 x IEC 60320 C19, 3 x IEC 60320 C13)

• Network monitoring
  Gain access to valuable data through connections.
• Star multi-linking
  Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
• Auto-flip current display
  Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
• Hot-swap network card
  Network access is ensured when power is lost to the master unit with backup power provided by the primary link unit.
• Temperature/humidity monitoring
  Master unit supports two external probes. Receive SNMP-based alerts and email notifications.
• High retention locking outlets
  Receptacles have high retention.

The Server Technology PRO1 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points are accessible through the built-in Web and CLI interfaces as well as through SNMP.

• Network monitoring
• Star multi-linking
• Auto-flip current display
• Hot-swap network card
• Temperature/humidity monitoring
• High retention locking outlets
